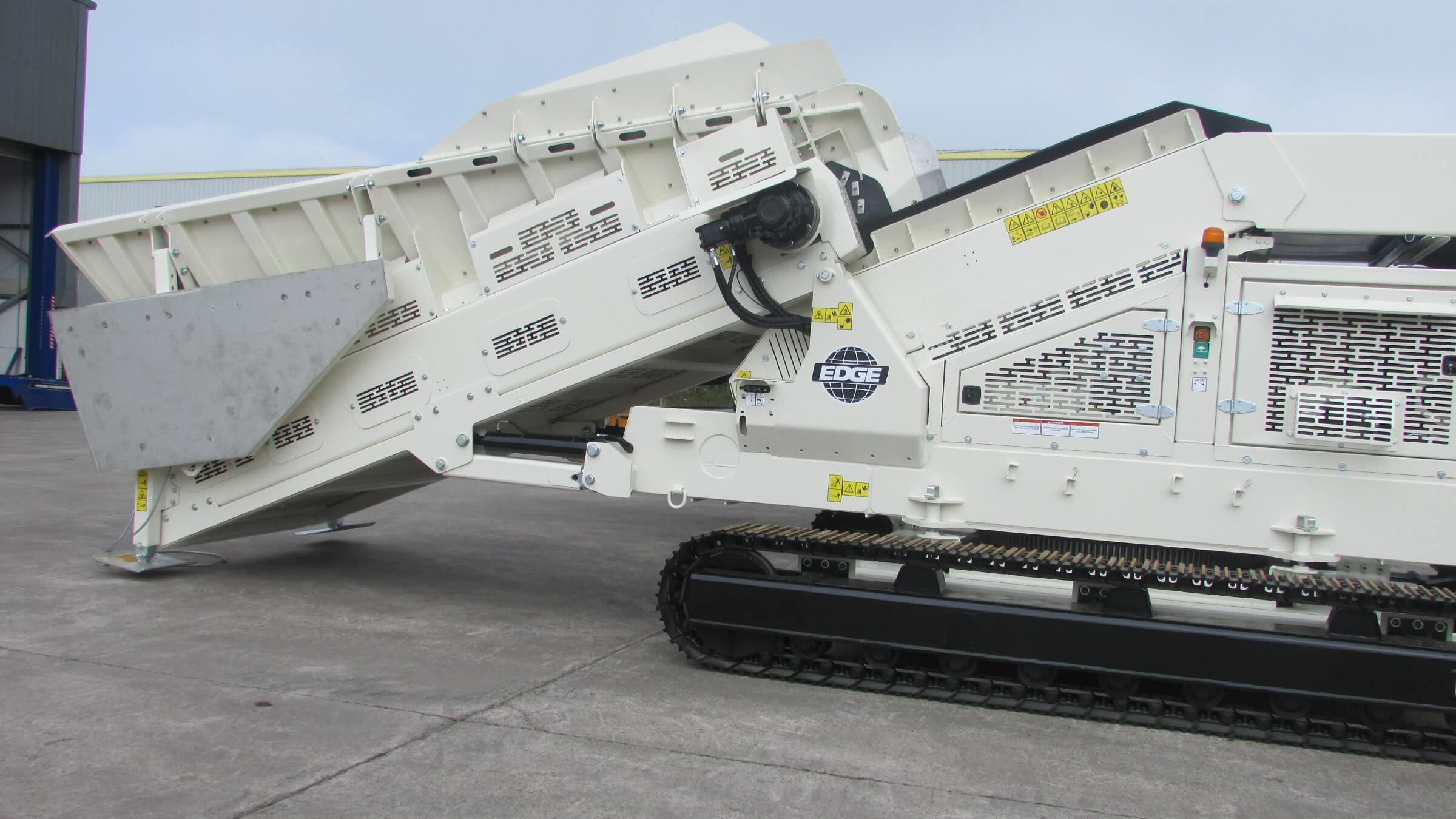

Edge Low Feed Track Stockpiler- 360° Slew
The LTS 360 Unlimited is a low feed track stockpiler designed to receive loads directly from wheel loaders and excavators with the added advantage of 360° slew functionality.
APPLICATIONS
• Ores
• Oversize Aggregates
• Construction and demolition waste (C&D)
• Sand and gravel
• Compost
• Topsoil
• Scrap metal
• Coal
• Salt
Description
LTS 360 Unlimited
The EDGE LTS 360° Unlimited Range incorporates all the benefits of the popular LTS Series product line and adds an additional design feature, with its ability to slew a complete 360° uninterrupted. Mounted on a centre slew bearing chassis the LTS 360 has brought production efficiency improve-ments in many ports and quarries throughout the globe.
The 360°slewing functionality, pioneered by EDGE Innovate allows the LTS360 to simply position its tracks parallel to the vessel/wagon, allowing the unit to travel alongside the vessel/wagon without the need to readjust the orientation of the machine. The added benefit provided by the 360° slew function is further enhanced with the LTS range’s ability to receive loads directly with wheel loader on all three sides of the hopper without the need to construct ramps.
With conveyor discharge lengths of up to 23m (75’), hopper capacity of up to 7m³ (9 yrds³),the EDGE LTS360 provides another solution for barge and train wagon loading and unloading, as well as creating radial stockpiles.
