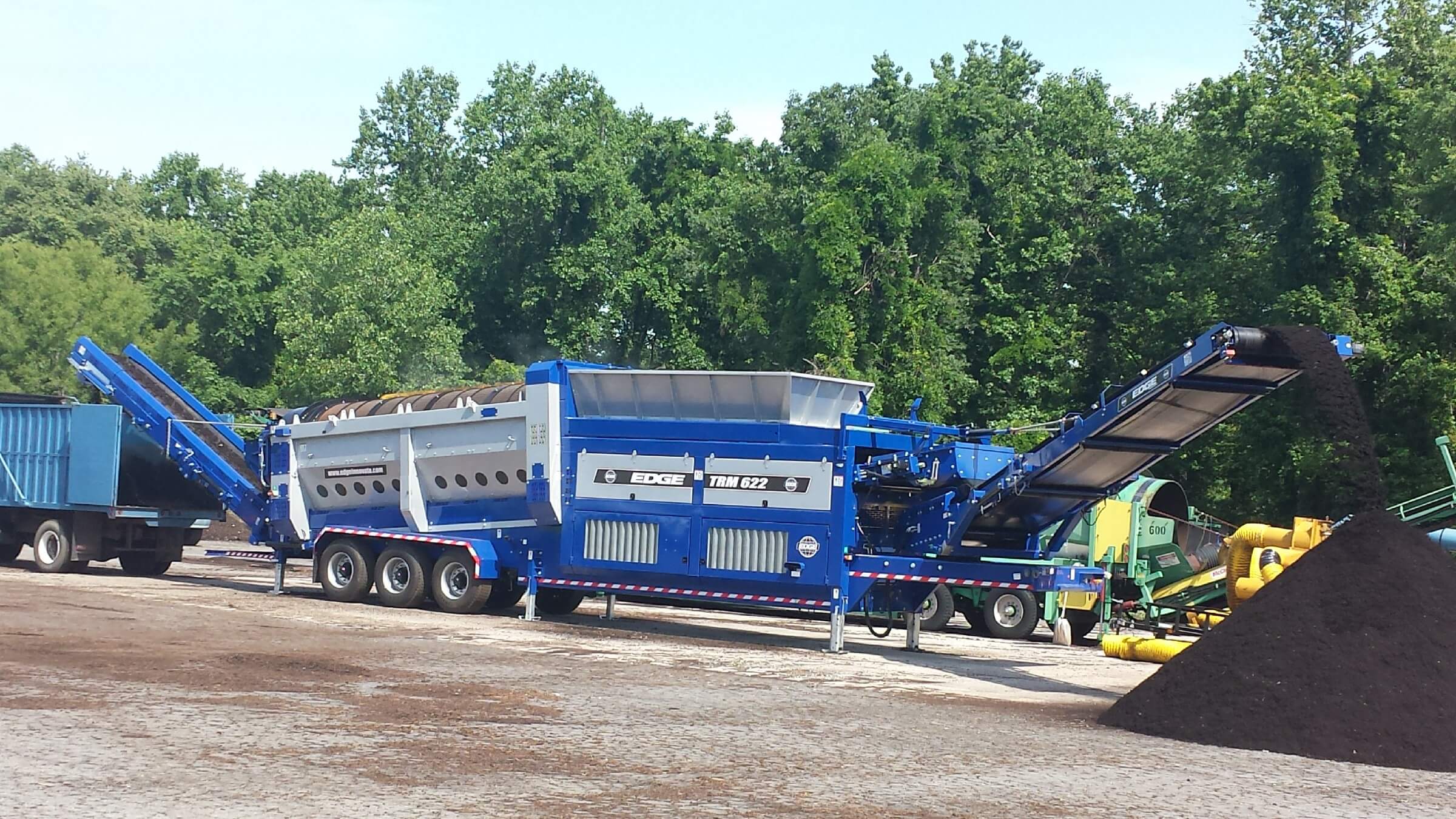

Edge Mobile Trommel TRM622
The TRM622 mobile trommel combines intelligent load sensing with a 180° radial fines conveyor and a user friendly control interface.
APPLICATIONS
• Aggregates
• Sand and gravel
• Compost
• Mulch
• Construction and demolition waste (C&D)
• RDF processing
• Top soil
• Wood waste
• Skip waste
• Commercial and industrial waste (C&I)
• Green waste
Description
TRM622 Mobile Trommel
The EDGE TR622 Trommel combines high production rates with ease of use in a robust, portable and versatile screening plant that is ideal for applications such as top soil, recycling, composting and is proven in construction and demolition waste.
The TR622 incorporates impressive design features such as 2m X 6.9m (6’ X 22’) long screening drum, a 180° radial fines conveyor with a discharge height of up to 5.9m (16’10”), unique load sensing hydraulic drive system, eco-power saving functionality and a user friendly HMI control panel enabling easy adjustment to suit varying applications. Material spillage and bridging is prevented thanks to the steep side drum hopper sides, large feeder opening and a 1500mm (60”) wide collection conveyor. A quick drum exchange is facilitated via the hydraulic sliding feeder, enabling operators to simply lift out the existing drum to be replaced with the various drum types available.
